Eceng Pure Water Bottle Moulding Machine

Product Categories
Zhangjiagang Eceng Machinery Co., Ltd.
Contact Now

Eceng Pure Water Bottle Moulding Machine

Place of Origin : Jiangsu, China

Brand Name : Eceng

Model Number : Q9000

Packaging Details : package suits transportation for 6000bph Automatic blow PET bottle machine/preform blower

Supply Ability : 10 Set/Sets per Month

Certification : CE SGS ISO

MOQ : 1set

Payment Terms : L/C, T/T, Western Union

Delivery Time : 45days

Plastic Processed : PET

Max.Bottle Height(mm) : 330 mm

Neck Diameter(mm) : 38 mm

Max.Bottle Diameter(mm) : 105 mm

Bottle Volume(ml) : 2000 ml

Condition : New

Application : bottle, plastic PET bottle

Blow Moulding Type : Stretch Blow Moulding

Voltage : 380V/50HZ, 3phase 380V/220V/415V 50HZ

Dimension(L*W*H) : 5.5*1.6*1.9(m)

Hollow part volume : 2l

High Pressure Valve Brand : mac

Rotary Cylinder Brand : smc

PLC Brand : XINJE

Power (kW) : 75

Weight (KG) : 4500 KG

Automation : Automatic

Warranty : 1 Year

Key Selling Points : Automatic

Applicable Industries : Food & Beverage Factory

Marketing Type : Hot Product 2019

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

Automatic : Yes

Color : orange

PLC : XINJIE CHINA

High pressure valve : mac/parker

location : Zhangjiagang city

Production Capacity (BPH) : 9000 BPH

Port : Shanghai

Contact Now

Eceng 6 Cavity Auto Blow Moulding Machine For Making pure water bottleEceng Pure Water Bottle Moulding Machine
specification
Item
Q9000
Bottle type specification
Cavity
6
Theory output
9000bph
Max.volume
2L
Bottle mouth maximum overall diameter
28-38mm
Bottle biggest diameter
105mm
Bottle maximum height
330mm
Power specification
Light tube quantity
48pcs
Light tube power
1.5KW
Maximum heating power
72KW
All electric machine installation
75KW
Actual consumption
40%--70%
Air pressure specification
Work pressure
7-9kg/cm2
Low-pressure gas consumption
1000L/min
Blow bottle pressure
25-35kg/cm2
Higher -pressure gas consumption
3000Ltr/min
Air pressure specification
Work pressure
5-6 kg/cm2
Temperature range
10℃
Consumption
8000kcal/hr
Frozen water flow
138L/min
Machine specification
Machine size
5.5x1.6x1.9
Machine weight
4.5ton
Eceng Pure Water Bottle Moulding Machine
Eceng Pure Water Bottle Moulding Machine
Eceng Pure Water Bottle Moulding Machine
Q series is a stable two-step blow-down stretch automatic blowing machine.It can be used from 2 cavity to 9 cavity with a speed of 1000 bottles per hour (500 ml plastic bottles),max volume 2L plastic bottle,suitable for blowing any kind of carbonated beverage bottle,sparkling beverage bottle,pure water bottle, mineral water bottle,fruit juice beverage bottle,cosmetic bottles,large diameter bottles, high temperature resistance bottles and other packaging bottles.
Eceng Pure Water Bottle Moulding Machine
Our Advantage
1. Resonable price 2. Good after service 3. experienced skilled workers and professional engineers 4. Good quality ,excellent service ,long life mould 5. on time delivery time 6.Our engineers can be online for 24 hours to serve you

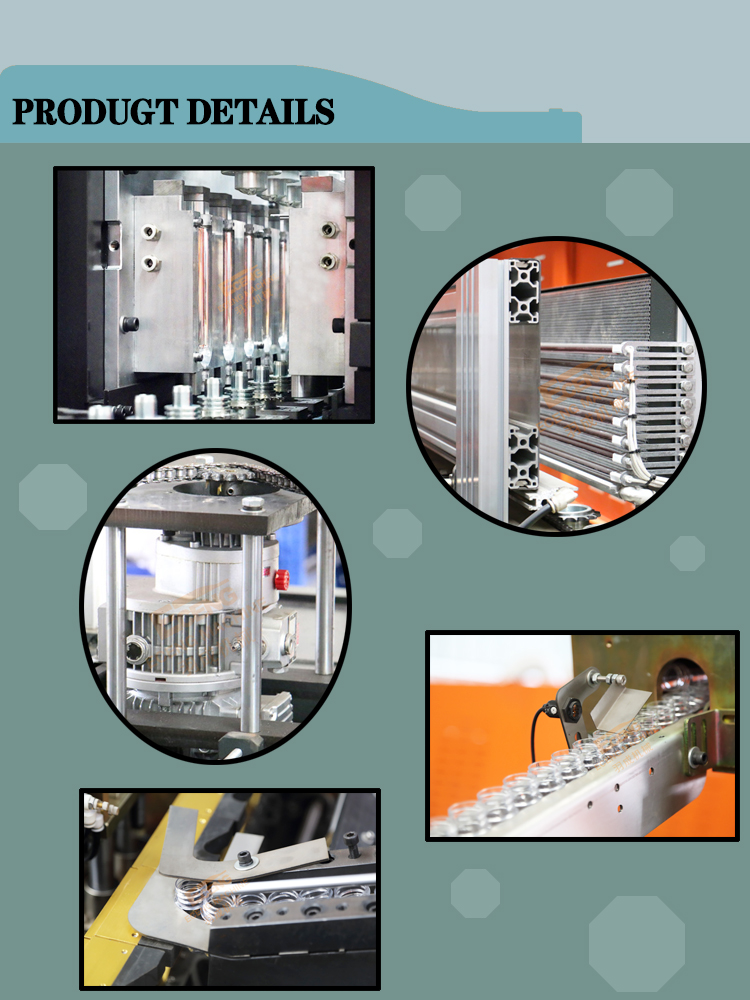

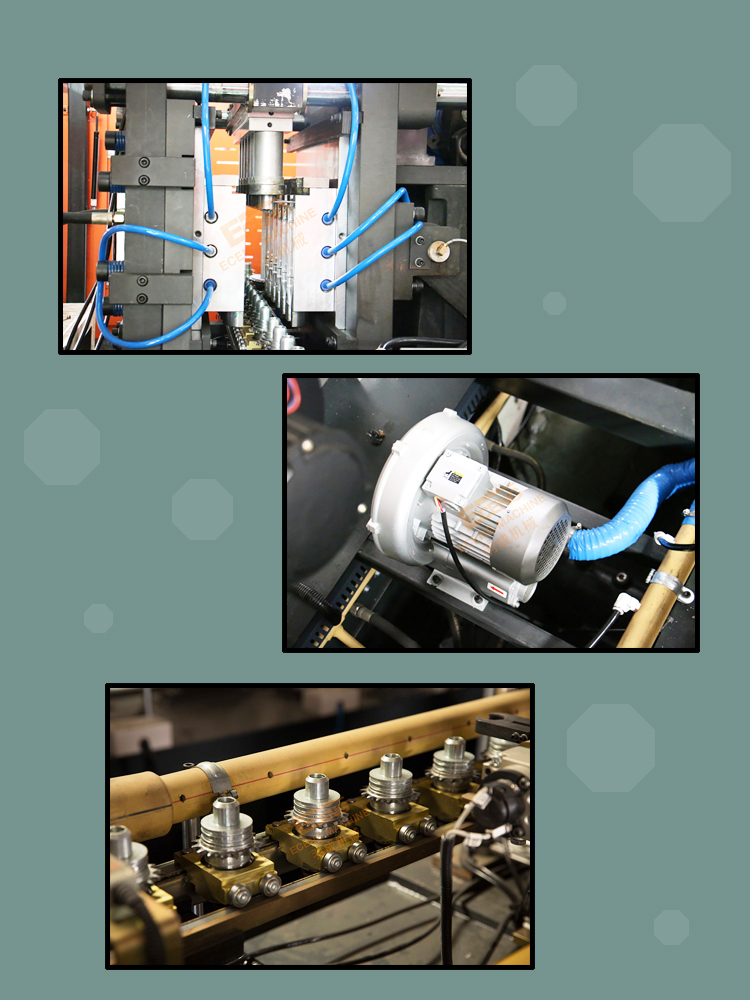

Detailed Images
Eceng Pure Water Bottle Moulding Machine
Eceng Pure Water Bottle Moulding Machine
Eceng Pure Water Bottle Moulding Machine
Q linear bottle blowing machine adopts advanced microcomputer PLC control system, stable performance,manual type and fully automatic type. Q series linear bottle blowing machine features: 1.stable and accurate running at high speed,adopt more stable and advanced microcomputer PLC control system. 2. production process is fully automated, with the advantages of low investment, high efficiency, easy operation, simple maintenance and safety. 3. suitable for flexible production of quantity and various bottle shape,wide range of applications,meet customer needs. 4. manual and automatic methods of operation, human-machine interface control, simple operation. 5. servo transmission system, high positioning accuracy, fast speed stability and good reliability. 6. less than 0.2% scrap rate for finished bottle .
Company Introduction
Eceng Pure Water Bottle Moulding Machine
Packing&Shipping
Eceng Pure Water Bottle Moulding Machine

FAQ
Q:Your company is a trading company or a direct factory?
A:We are a direct factory which locates in Zhangjiagang city.
Q:All of your products are made by yourself or compacted via purchasing the others?
A:We have independent technical team who focus on making machines,all the products are made by our technical team.
Q:What is the ability of your factory?
A:About 80 lines per year.
Q:Do you have any other services about your products?
A:We have a lot of experience on making projects and specifications for our clients,also we have a fixed service system.
Q:How do you make the quotation for clients?
A:The price depends on quality and performance but the clients should be satisfied first.

Product Tags:

Eceng pure water bottle moulding machine



Eceng 6 Cavity PET Stretch Blowing Machine



2000ml PET Stretch Blowing Machine


Quality Eceng Pure Water Bottle Moulding Machine wholesale
