4 Cavity Jar Blowing Machine PET Cans Blow Molding Plant 2.5ton

Zhangjiagang Eceng Machinery Co., Ltd.
Contact Now

4 Cavity Jar Blowing Machine PET Cans Blow Molding Plant 2.5ton

Brand Name : ECENG

Model Number : J series

Certification : CE SGS ISO

Place of Origin : CHINA

MOQ : One

Payment Terms : TT LC western Union

Supply Ability : 10sets Per month

Delivery Time : 45days

Packaging Details : film/wooden

Weight : 2.5ton

Capacity : High

Color : Customized

Control System : PLC

Material : Plastic

Molding Method : Blow Molding

Contact Now

4 Cavity jar blowing machine PET cans blow molding plant. Specification
Model
J4
Bottle type specification
Cavity
4
Theory output bph
2200-2400
Max.volum
2L
Bottle mouth maximum overall diameter
80mm
Bottle biggest diameter
100mm
Bottle maximum height
330mm
Power specification
Light tube quantity
32pcs
Light tube power
1KW
Maximum heating power
32KW
All electric machine installation
42KW
Actual consumption
30%--60%
Air pressure specification
Work pressure
7-9kg/cm2
Low-pressure gas consumption
1600L/min
Blow bottle pressure
25-35kg/cm2
Higher -pressure gas consumption
3000Ltr/min
Frozen water specification
Work pressure
7-9 kg/cm2
Temperature range
10℃
Consumption
8000kcal/hr
Forzen water flow
138L/min
Machine specification
Machine size
4.1x1.6x1.9
Machine weight
3.9ton
In today's fast-paced world, the demand for packaging solutions is growing rapidly. The industry is constantly pushing boundaries to create better and more efficient ways to meet the needs of consumers. One solution that has gained popularity in recent years is PET can blow molding. This technology allows for the creation of plastic wide mouth containers that are sturdy, lightweight, and cost-effective.
One of the most widely used machines in the PET can blow molding industry is the 4 cavity jar blowing machine. This machine has four molds that can be used simultaneously to produce four containers at a time. This makes the process of creating plastic jars and bottles quick and efficient, making it an ideal choice for manufacturers who need to produce high volumes of containers.
The technology allows for the creation of sturdy, lightweight, and customizable containers that are ideal for a wide range of applications. With a 4 cavity jar blowing machine and state-of-the-art equipment, PET can blow molding plants are able to meet the demands of today's fast-paced world. Additionally, its environmentally friendly features make it a preferred solution for manufacturers who are looking to reduce their carbon footprint.

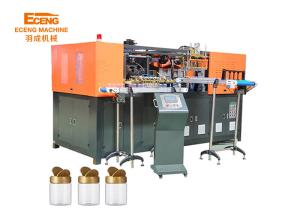

Product Photo
4 Cavity Jar Blowing Machine PET Cans Blow Molding Plant 2.5ton
4 Cavity Jar Blowing Machine PET Cans Blow Molding Plant 2.5ton
4 Cavity Jar Blowing Machine PET Cans Blow Molding Plant 2.5ton
4 Cavity Jar Blowing Machine PET Cans Blow Molding Plant 2.5ton
4 Cavity Jar Blowing Machine PET Cans Blow Molding Plant 2.5ton
4 Cavity Jar Blowing Machine PET Cans Blow Molding Plant 2.5ton
Working Process:
4 Cavity Jar Blowing Machine PET Cans Blow Molding Plant 2.5ton
Sketch Map:
4 Cavity Jar Blowing Machine PET Cans Blow Molding Plant 2.5ton
4 Cavity Jar Blowing Machine PET Cans Blow Molding Plant 2.5ton
4 Cavity Jar Blowing Machine PET Cans Blow Molding Plant 2.5ton
4 Cavity Jar Blowing Machine PET Cans Blow Molding Plant 2.5ton
4 Cavity Jar Blowing Machine PET Cans Blow Molding Plant 2.5ton
4 Cavity Jar Blowing Machine PET Cans Blow Molding Plant 2.5ton
4 Cavity Jar Blowing Machine PET Cans Blow Molding Plant 2.5ton
4 Cavity Jar Blowing Machine PET Cans Blow Molding Plant 2.5ton
4 Cavity Jar Blowing Machine PET Cans Blow Molding Plant 2.5ton
4 Cavity Jar Blowing Machine PET Cans Blow Molding Plant 2.5ton
Exhibition
4 Cavity Jar Blowing Machine PET Cans Blow Molding Plant 2.5ton
About Us
4 Cavity Jar Blowing Machine PET Cans Blow Molding Plant 2.5ton
Product packaging
4 Cavity Jar Blowing Machine PET Cans Blow Molding Plant 2.5ton
Packing
Conventional packaging: inside is wrapped with PE film outside is wooden box
4 Cavity Jar Blowing Machine PET Cans Blow Molding Plant 2.5ton
Delivery Conventional packaging: inside is wrapped with PE film outside is wooden box
4 Cavity Jar Blowing Machine PET Cans Blow Molding Plant 2.5ton
4 Cavity Jar Blowing Machine PET Cans Blow Molding Plant 2.5ton
4 Cavity Jar Blowing Machine PET Cans Blow Molding Plant 2.5ton
